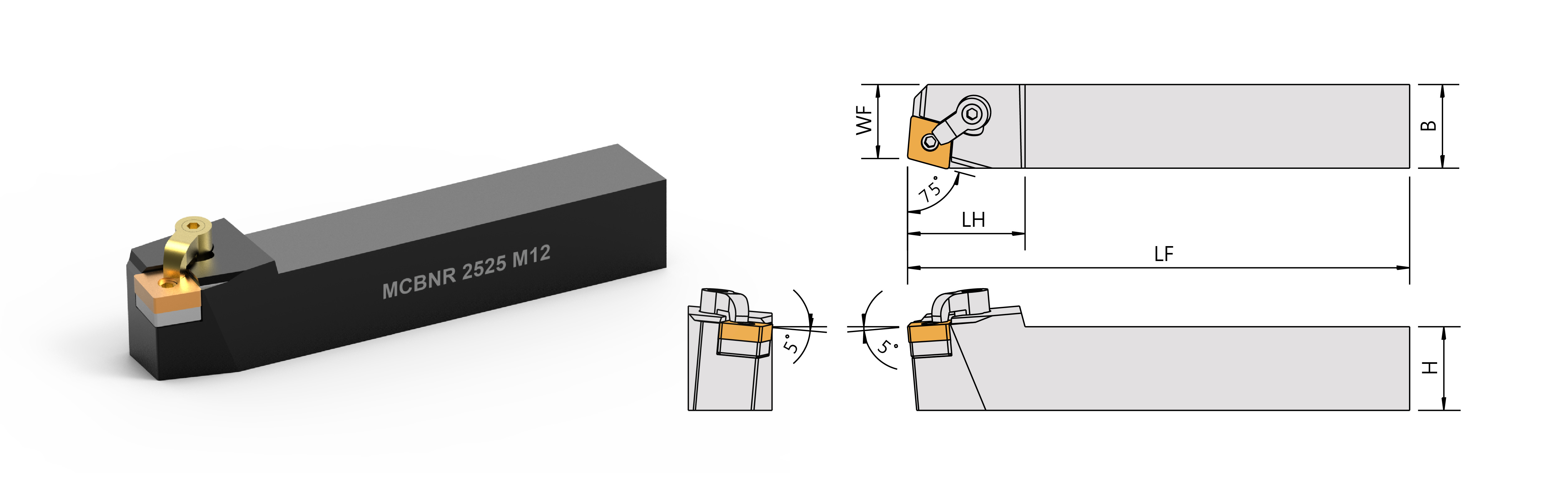

Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Right/Left | H | B | LF | LH | WF | ||||||
MCBNR/L-2020K12 | CNMG1204 | 20 | 20 | 125 | 30 | 17 | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
MCBNR/L-2525M12 | CNMG1204 | 25 | 25 | 150 | 30 | 22 | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
MCBNR/L-3232P12 | CNMG1204 | 32 | 32 | 170 | 40 | 27 | SMC-432 | LCS-617 | CP50-22 | CS7-6030 | LW030 |
MCBNR/L-2525M16 | CNMG1606 | 25 | 25 | 150 | 30 | 22 | SMC-533 | LCS-822 | CP50-22 | CS7-6030 | LW030 |
MCBNR/L-3232P16 | CNMG1606 | 32 | 32 | 170 | 40 | 27 | SMC-533 | LCS-822 | CP50-22 | CS7-6030 | LW030 |
MCBNR/L-3232P19 | CNMG1909 | 32 | 32 | 170 | 40 | 27 | SMC-633 | LCS1022 | CP50-29 | CS7-8030 | LW040 |
