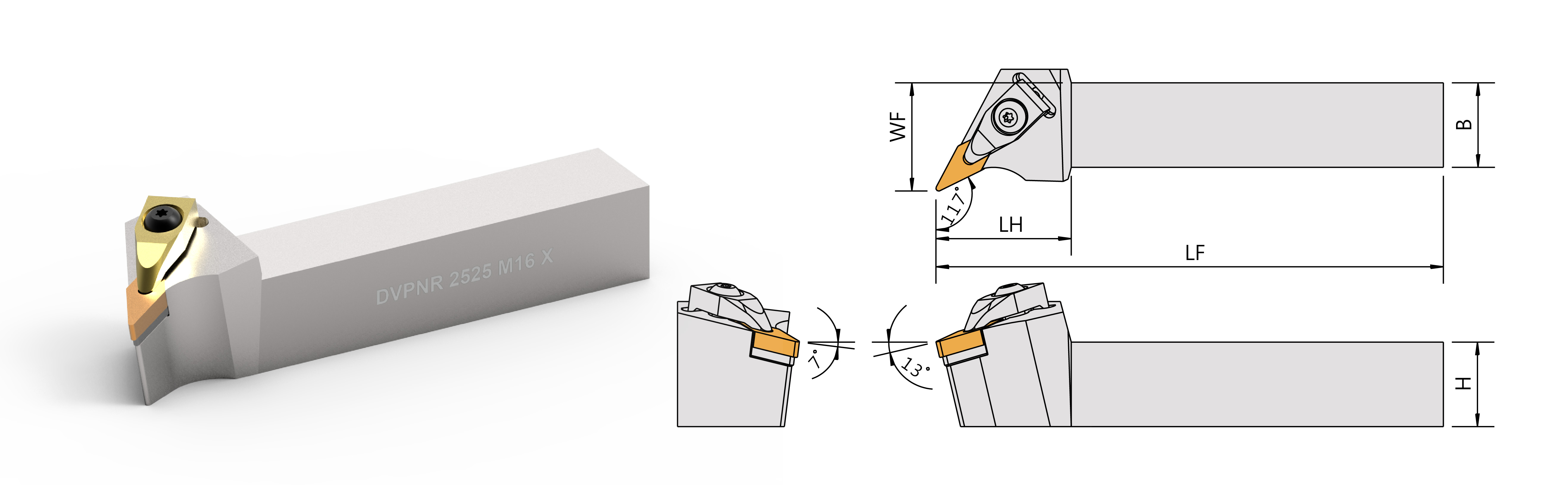

Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
Right / Left | H | B | LF | LH | WF | |||||||
DVPNR/L2020K16 | VNMG1604 | 20 | 20 | 125 | 43 | 25 | SMV322 | CS40075 | CP-D3 | SP0816 | CSB6020T | TL20 |
DVPNR/L2525M16 | 25 | 25 | 150 | 43 | 32 | SMV322 | CS40075 | CP-D3 | SP0816 | CSB6020T | TL20 |
