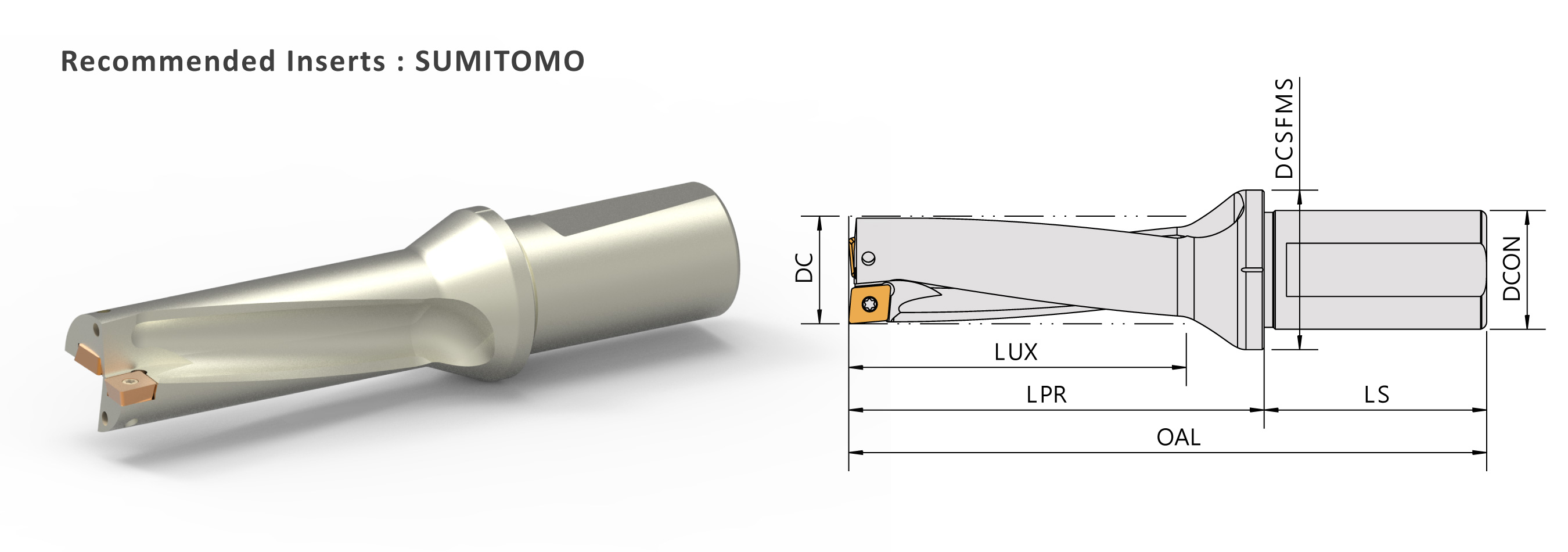

▼建議刀片品牌 : SUMITOMO
| Order No. | Insert | Dimensions | Screw | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left | 刀徑 | 柄徑 | 夾持接觸面直徑 | 最大鑽頭 | 總長 | 懸伸長度 | 柄長 | Fig |  |
 |
 |
|
| DC | DCON | DCSFMS | LUX | OAL | LPR | LS | ||||||
| WDX130D3S20N | WDXT042004 | 13.0 | 20 | 28 | 42.0 | 101.0 | 57.0 | 44 | 1 | S16045 | FT-6 | - |
| WDX135D3S20N | WDXT042004 | 13.5 | 20 | 28 | 43.5 | 102.5 | 58.5 | 44 | 1 | |||
| WDX140D3S20N | WDXT042004 | 14.0 | 20 | 28 | 45.0 | 104.0 | 60.0 | 44 | 1 | |||
| WDX145D3S20N | WDXT042004 | 14.5 | 20 | 28 | 46.5 | 105.5 | 61.5 | 44 | 1 | |||
| WDX150D3S20N | WDXT042004 | 15.0 | 20 | 28 | 48.0 | 107.0 | 63.0 | 44 | 1 | |||
| WDX155D3S20N | WDXT052504 | 15.5 | 20 | 28 | 49.5 | 108.5 | 64.5 | 44 | 1 | CS20047 | FT-6 | - |
| WDX160D3S20N | WDXT052504 | 16.0 | 20 | 28 | 51.0 | 110.0 | 66.0 | 44 | 1 | |||
| WDX165D3S20N | WDXT052504 | 16.5 | 20 | 28 | 52.5 | 111.5 | 67.5 | 44 | 1 | |||
| WDX170D3S20N | WDXT052504 | 17.0 | 20 | 28 | 54.0 | 113.0 | 69.0 | 44 | 1 | |||
| WDX175D3S25N | WDXT052504 | 17.5 | 25 | 33 | 55.5 | 126.5 | 70.5 | 56 | 1 | |||
| WDX180D3S25N | WDXT052504 | 18.0 | 25 | 33 | 57.0 | 128.0 | 72.0 | 56 | 1 | |||
| WDX185D3S25N | WDXT063006 | 18.5 | 25 | 33 | 58.5 | 129.5 | 73.5 | 56 | 1 | CS22060 | - | DT-7 |
| WDX190D3S25N | WDXT063006 | 19.0 | 25 | 33 | 60.0 | 131.0 | 75.0 | 56 | 1 | |||
| WDX195D3S25N | WDXT063006 | 19.5 | 25 | 33 | 61.5 | 132.5 | 76.5 | 56 | 1 | |||
| WDX200D3S25N | WDXT063006 | 20.0 | 25 | 33 | 63.0 | 134.0 | 78.0 | 56 | 1 | |||
| WDX205D3S25N | WDXT063006 | 20.5 | 25 | 33 | 64.5 | 135.5 | 79.5 | 56 | 1 | |||
| WDX210D3S25N | WDXT063006 | 21.0 | 25 | 33 | 66.0 | 137.0 | 81.0 | 56 | 1 | |||
| WDX215D3S25N | WDXT063006 | 21.5 | 25 | 33 | 67.5 | 138.5 | 82.5 | 56 | 1 | |||
| WDX220D3S25N | WDXT063006 | 22.0 | 25 | 33 | 69.0 | 140.0 | 84.0 | 56 | 1 | |||
| WDX225D3S25N | WDXT063006 | 22.5 | 25 | 33 | 70.5 | 141.5 | 85.5 | 56 | 1 | |||
| WDX230D3S25N | WDXT073506 | 23.0 | 25 | 33 | 72.0 | 146.0 | 90.5 | 56 | 1 | CS25055/ CS25052S |
- | DBIT-T8 |
| WDX235D3S25N | WDXT073506 | 23.5 | 25 | 33 | 73.5 | 147.5 | 91.5 | 56 | 1 | |||
| WDX240D3S25N | WDXT073506 | 24.0 | 25 | 33 | 75.0 | 149.0 | 93.0 | 56 | 1 | |||
| WDX245D3S25N | WDXT073506 | 24.5 | 25 | 33 | 76.5 | 150.5 | 94.5 | 56 | 1 | |||
| WDX250D3S25N | WDXT073506 | 25.0 | 25 | 33 | 78.0 | 152.0 | 96.0 | 56 | 1 | |||
| WDX255D3S32N | WDXT073506 | 25.5 | 32 | 41 | 79.5 | 159.5 | 99.5 | 60 | 2 | |||
| WDX260D3S32N | WDXT073506 | 26.0 | 32 | 41 | 81.0 | 161.0 | 101.0 | 60 | 2 | |||
| WDX265D3S32N | WDXT073506 | 26.5 | 32 | 41 | 82.5 | 162.5 | 102.5 | 60 | 2 | |||
| WDX270D3S32N | WDXT073506 | 27.0 | 32 | 41 | 84.0 | 164.0 | 104.0 | 60 | 2 | |||
| WDX275D3S32N | WDXT073506 | 27.5 | 32 | 41 | 85.5 | 165.5 | 105.5 | 60 | 2 | |||
| WDX280D3S32N | WDXT073506 | 28.0 | 32 | 41 | 87.0 | 167.0 | 107.0 | 60 | 2 | |||
| WDX285D3S32N | WDXT073506 | 28.5 | 32 | 41 | 88.5 | 168.5 | 108.5 | 60 | 2 | |||
| WDX290D3S32N | WDXT094008 | 29.0 | 32 | 41 | 91.0 | 172.0 | 112.0 | 60 | 2 | CS35095 | - | DBIT-T15 |
| WDX295D3S32N | WDXT094008 | 29.5 | 32 | 41 | 92.5 | 173.5 | 113.5 | 60 | 2 | |||
| WDX300D3S32N | WDXT094008 | 30.0 | 32 | 41 | 94.0 | 178.0 | 118.0 | 60 | 2 | |||
| WDX310D3S32N | WDXT094008 | 31.0 | 32 | 41 | 97.0 | 181.0 | 121.0 | 60 | 2 | |||
| WDX320D3S32N | WDXT094008 | 32.0 | 32 | 41 | 100.0 | 184.0 | 124.0 | 60 | 2 | |||
| WDX330D3S40N | WDXT094008 | 33.0 | 40 | 54 | 103.0 | 197.0 | 127.0 | 70 | 2 | |||
| WDX340D3S40N | WDXT094008 | 34.0 | 40 | 54 | 106.0 | 200.0 | 130.0 | 70 | 2 | |||
| WDX350D3S40N | WDXT094008 | 35.0 | 40 | 54 | 109.0 | 203.0 | 133.0 | 70 | 2 | |||
| WDX360D3S40N | WDXT094008 | 36.0 | 40 | 54 | 112.0 | 206.0 | 136.0 | 70 | 2 | |||
| WDX370D3S40N | WDXT125012 | 37.0 | 40 | 54 | 116.0 | 216.0 | 146.0 | 70 | 2 | CS50100 | - | DBIT-T20 |
| WDX380D3S40N | WDXT125012 | 38.0 | 40 | 54 | 119.0 | 219.0 | 149.0 | 70 | 2 | |||
| WDX390D3S40N | WDXT125012 | 39.0 | 40 | 54 | 122.0 | 222.0 | 152.0 | 70 | 2 | |||
| WDX400D3S40N | WDXT125012 | 40.0 | 40 | 54 | 125.0 | 225.0 | 155.0 | 70 | 2 | |||
| WDX410D3S40N | WDXT125012 | 41.0 | 40 | 54 | 128.0 | 228.0 | 158.0 | 70 | 2 | |||
| WDX420D3S40N | WDXT125012 | 42.0 | 40 | 54 | 131.0 | 231.0 | 161.0 | 70 | 2 | |||
| WDX430D3S40N | WDXT125012 | 43.0 | 40 | 54 | 134.0 | 234.0 | 164.0 | 70 | 2 | |||
| WDX440D3S40N | WDXT125012 | 44.0 | 40 | 54 | 137.0 | 237.0 | 167.0 | 70 | 2 | |||
| WDX450D3S40N | WDXT125012 | 45.0 | 40 | 54 | 140.0 | 240.0 | 170.0 | 70 | 2 | |||
