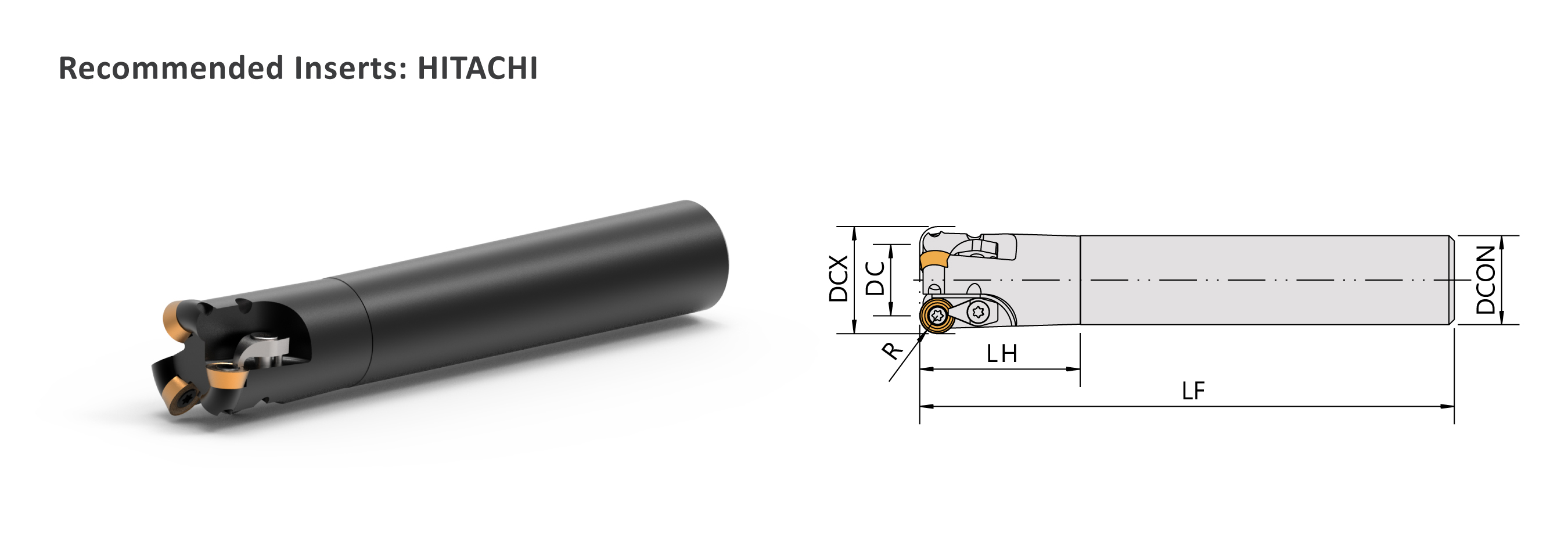

▼建議刀片品牌 : HITACHI
Order No. | Insert | Dimensions(mm) | Screw | Clamp | Wrench | |||||
---|---|---|---|---|---|---|---|---|---|---|
Right / Left | 最大刀徑 | 刀徑 | 柄徑 | 長度 | 頭長 | 刃數 | ||||
DCX | DC | DCON | LF | LH | I No. | |||||
ERD10-2525M02 | RDMT10T3 | 25 | 15 | 25 | 150 | 45 | 2 | CS35091 | CP50-27AS | DBIT-T15 |
ERD10-2525R02 | RDMT10T3 | 25 | 15 | 25 | 200 | 45 | 2 | CS35091 | CP50-27AS | DBIT-T15 |
ERD10-3025M03 | RDMT10T3 | 30 | 20 | 25 | 150 | 45 | 3 | CS35091 | CP50-27AS | DBIT-T15 |
ERD10-3025R03 | RDMT10T3 | 30 | 20 | 25 | 200 | 45 | 3 | CS35091 | CP50-27AS | DBIT-T15 |
ERD10-3532M03 | RDMT10T3 | 35 | 25 | 32 | 150 | 45 | 3 | CS35091 | CP50-27AS | DBIT-T15 |
ERD10-3532R03 | RDMT10T3 | 35 | 25 | 32 | 200 | 45 | 3 | CS35091 | CP50-27AS | DBIT-T15 |
