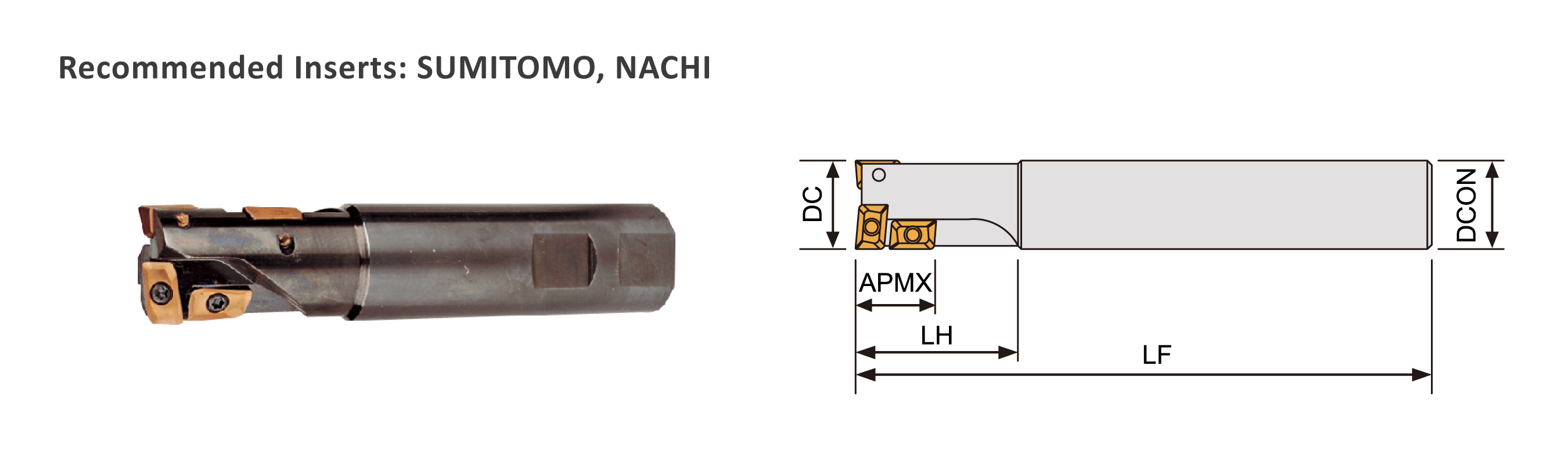

▼建議刀片品牌 : SUMITOMO / NACHI
| Order No. | Insert | Dimensions(mm) | Screw | Wrench | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |
刀徑 | 長度 | 切削刃長 | 柄徑 | 頭長 | 刃數 |  |
 |
 |
|||
| DC | LF | APMX | DCON | LH | I No. | ||||||||
| DM90AP10-D20K03 | APMT1035PDER | 20 | 125 | 16 | 20 | 35 | 3 | CS25065/ CS25062S |
DT-8 | - | |||
| DM90AP10-D20Q03 | APMT1035PDER | 20 | 185 | 16 | 20 | 35 | 3 | DT-8 | - | ||||
| DM90AP10-D21K03 | APMT1035PDER | 21 | 125 | 16 | 20 | 35 | 3 | DT-8 | - | ||||
| DM90AP10-D25L04 | APMT1035PDER | 25 | 140 | 24 | 25 | 35 | 4 | DT-8 | - | ||||
| DM90AP10-D25R04 | APMT1035PDER | 25 | 220 | 24 | 25 | 35 | 4 | DT-8 | - | ||||
| DM90AP10-D26L04 | APMT1035PDER | 26 | 140 | 24 | 25 | 35 | 4 | DT-8 | - | ||||
| DM90AP10-D30M05 | APMT1035PDER | 30 | 220 | 32 | 25 | 50 | 5 | DT-8 | - | ||||
| DM90AP16-D32M04 | APMT1605PDER | 32 | 150 | 40 | 32 | 50 | 4 | CS35090 | - | DBIT-T15 | |||
| DM90AP16-D32S04 | APMT1605PDER | 32 | 250 | 40 | 32 | 60 | 4 | CS35090 | - | DBIT-T15 | |||
| DM90AP16-D33M04 | APMT1605PDER | 33 | 150 | 40 | 32 | 50 | 4 | CS35090 | - | DBIT-T15 | |||
| DM90AP16-D40N04 | APMT1605PDER | 40 | 160 | 40 | 32 | 60 | 4 | CS35090 | - | DBIT-T15 | |||
| DM90AP16-D40S04 | APMT1605PDER | 40 | 250 | 40 | 32 | 60 | 4 | CS35090 | - | DBIT-T15 | |||
