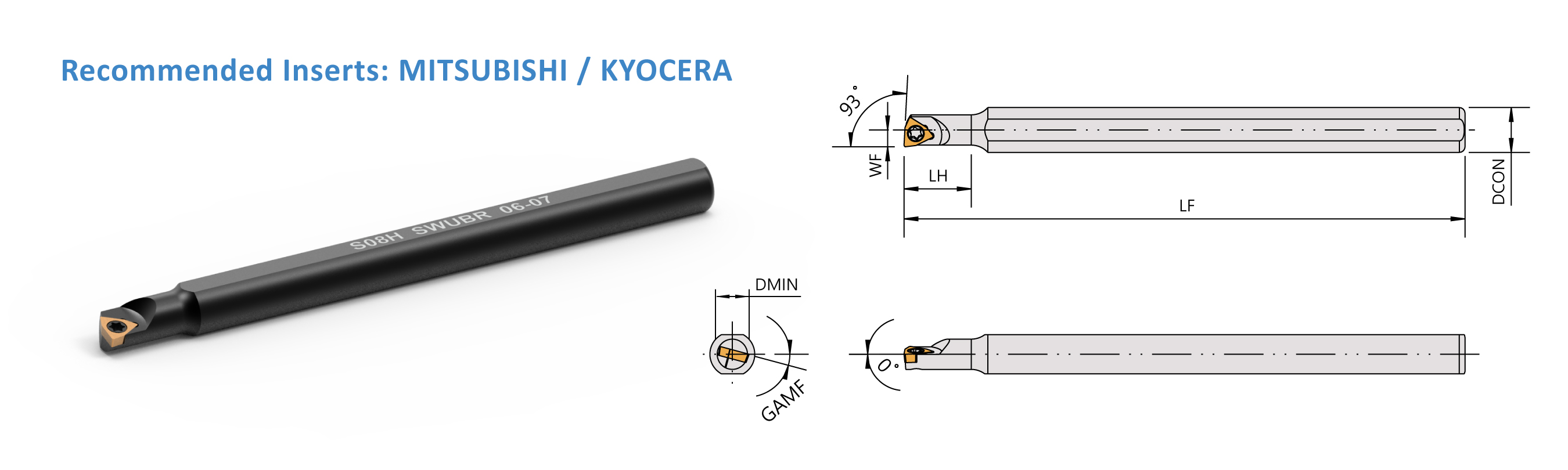

▼Recommended Inserts: MITSUBISHI / KYOCERA
Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||
---|---|---|---|---|---|---|---|---|---|
Right/Left | DCON | WF | LF | DMIN | LH | GAMF | |||
S08H-SWUBR/L06-5.5 | WBGT0601 | 8 | 3 | 100 | 5.5 | 18 | 15° | CS20038 | FT-6 |
S08H-SWUBR/L06-07 | WBGT0601 | 8 | 3.5 | 100 | 7 | 18 | 13° | CS20038 | FT-6 |
S08H-SWUBR/L06-10 | WBGT0601 | 8 | 5 | 100 | 10 | - | 13° | CS20038 | FT-6 |
S16K-SWUBR/L06-5.5 | WBGT0601 | 16 | 3 | 125 | 5.5 | 12 | 15° | CS20038 | FT-6 |
S10K-SWUBR/L08-12 | WBGT0802 | 10 | 6 | 125 | 12 | - | 11° | CS20045 | FT-6 |
S12M-SWUBR/L08-14 | WBGT0802 | 12 | 7 | 150 | 14 | - | 11° | CS20045 | FT-6 |
