| Order No. | Insert | Dimensions(mm) | Parts | Wrench | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right / Left |  |

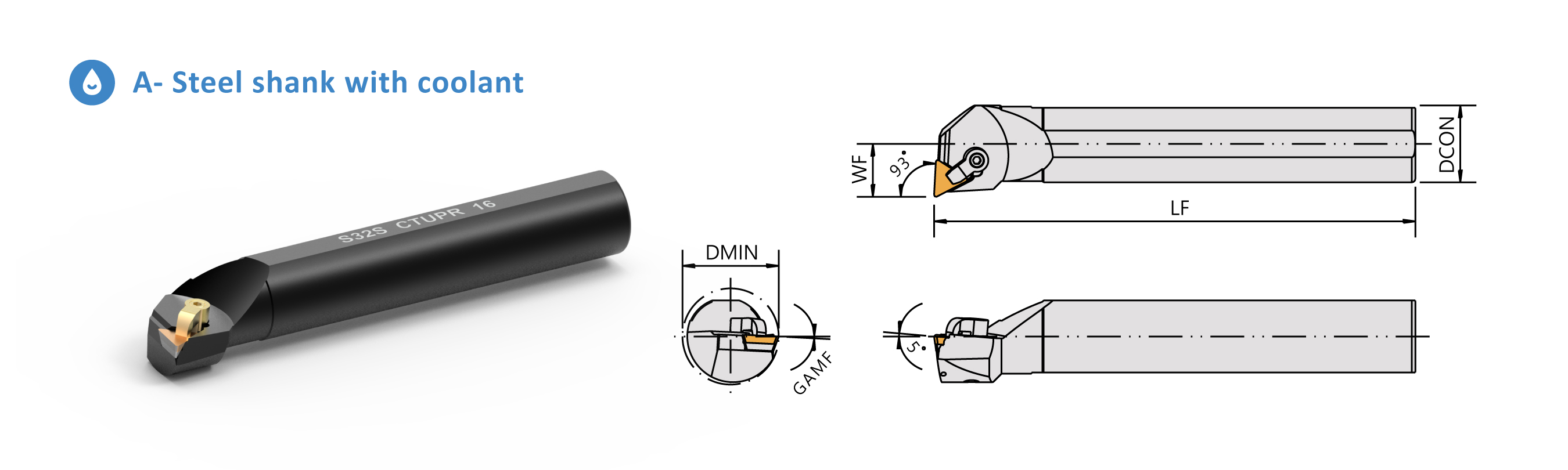

DCON | WF | LF | DMIN | GAMF |  |
 |
 |
 |
 |
|
| S12M-CTUPR/L11 | TPMN1103 | 12 | 9 | 150 | 16 | 6° | - | - | CP50-27AS | LW025 | ||
| S16Q-CTUPR/L11 | TPMN1103 | 16 | 11 | 180 | 20 | 3° | - | - | CP50-21 | CS7-5015 | LW025 | |
| S20R-CTUPR/L11 | TPMN1103 | 20 | 13 | 200 | 25 | 3° | - | - | CP50-21 | CS7-5015 | LW025 | |
| S25R-CTUPR/L16 | TPMN1603 | 25 | 17 | 200 | 32 | 3° | SMT-321 | CS20045 | CP50-22 | CS7-6024 | LW030 | |
| S32S-CTUPR/L16 | TPMN1603 | 32 | 22 | 250 | 40 | 3° | SMT-321 | CS20045 | CP50-22 | CS7-6024 | LW030 | |
