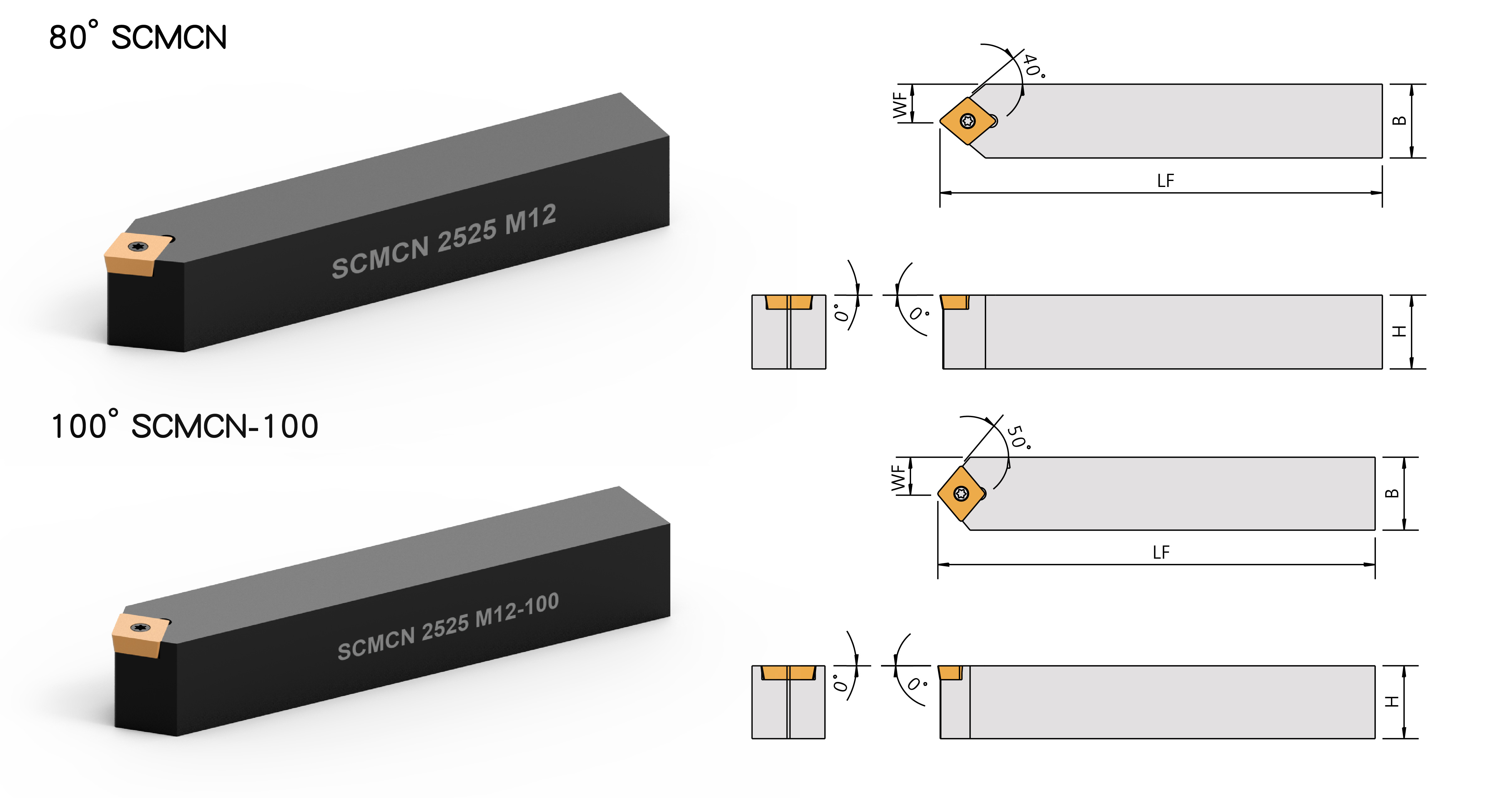

SCMCN 80° / SCMCN-100 100°

Please click the picture to enlarge.

Order No.	Insert	Dimensions(mm)				Parts	Wrench
Right/Left		H	B	LF	WF
SCMCN-1212H09	CCMT09T3	12	12	100	6	CS35090	FT-15
SCMCN-1616H09	CCMT09T3	16	16	100	8	CS35090	FT-15
SCMCN-2020K09	CCMT09T3	20	20	125	10	CS35090	FT-15
SCMCN-2525M09	CCMT09T3	25	25	150	12.5	CS35090	FT-15
SCMCN-2020K12	CCMT1204	20	20	125	10	CS40115	FT-15
SCMCN-2525M12	CCMT1204	25	25	150	12.5	CS40115	FT-15
SCMCN-1212H09-100	CCMT09T3	12	12	100	6	CS35090	FT-15
SCMCN-1616H09-100	CCMT09T3	16	16	100	8	CS35090	FT-15
SCMCN-2020K09-100	CCMT09T3	20	20	125	10	CS35090	FT-15
SCMCN-2525M09-100	CCMT09T3	25	25	150	12.5	CS35090	FT-15
SCMCN-2020K12-100	CCMT1204	20	20	125	10	CS40115	FT-15
SCMCN-2525M12-100	CCMT1204	25	25	150	12.5	CS40115	FT-15
