SCAC 90°

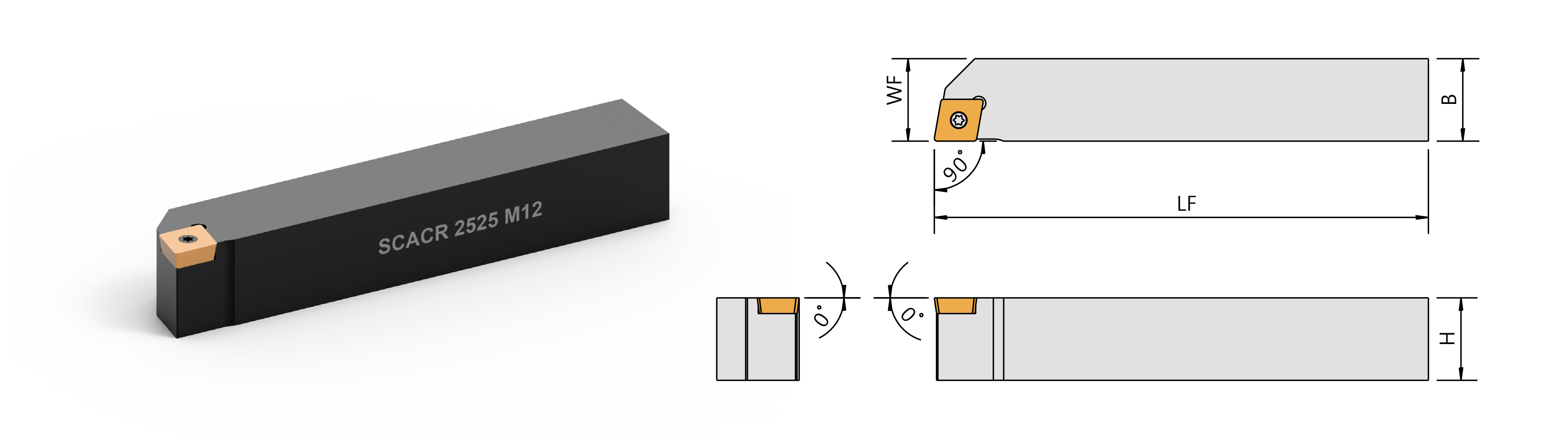

Please click the picture to enlarge.

Order No.	Insert	Dimensions(mm)				Parts	Wrench
Right/Left		H	B	LF	WF
SCACR/L-0808H06	CCMT0602	8	8	100	8.5	CS25060	FT-7
SCACR/L-1010H06	CCMT0602	10	10	100	10.5	CS25060	FT-7
SCACR/L-1212H06	CCMT0602	12	12	100	12.5	CS25060	FT-7
SCACR/L-0808K06	CCMT0602	8	8	125	8.5	CS25060	FT-7
SCACR/L-1010K06	CCMT0602	10	10	125	10.5	CS25060	FT-7
SCACR/L-1212K06	CCMT0602	12	12	125	12.5	CS25060	FT-7
SCACR/L-1212H09	CCMT09T3	12	12	100	12.5	CS35090	FT-15
SCACR/L-1616H09	CCMT09T3	16	16	100	16.5	CS35090	FT-15
SCACR/L-1212K09	CCMT09T3	12	12	125	12.5	CS35090	FT-15
SCACR/L-1616K09	CCMT09T3	16	16	125	16.5	CS35090	FT-15
SCACR/L-2020K12	CCMT1204	20	20	125	20.5	CS40115	FT-15
SCACR/L-2525M12	CCMT1204	25	25	150	25.5	CS40115	FT-15
