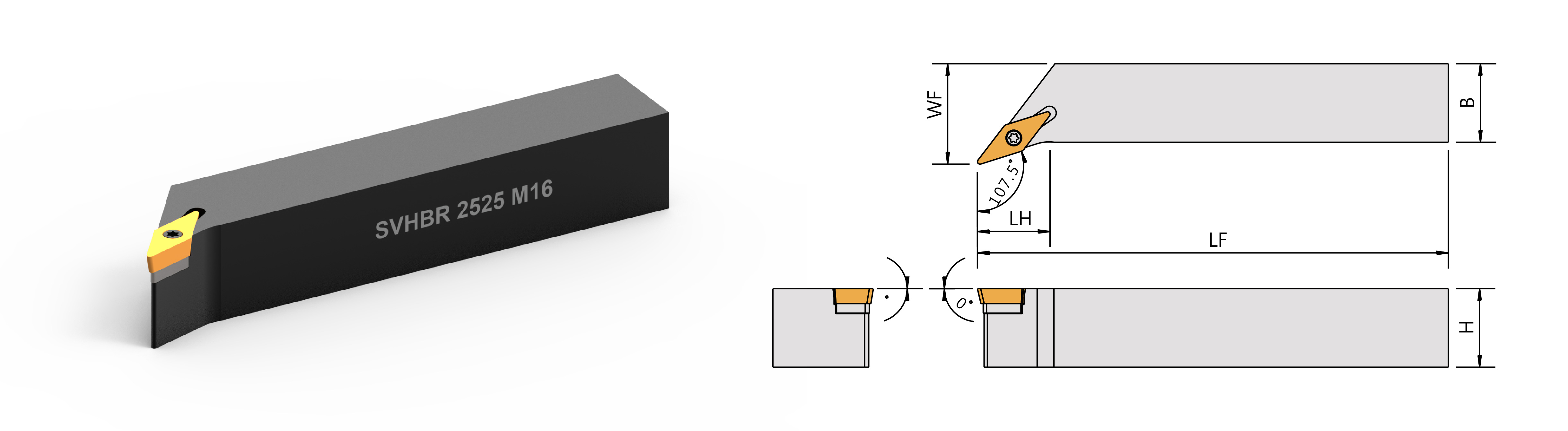

SVHB / SVHC 107.5°

Please click the picture to enlarge.

Order No.	Insert	Dimensions(mm)					Parts			Wrench
Right/Left		H	B	LF	LH	WF
SVHBR/L-1212F11	VBMT1103	12	12	80	13	16	-	-	CS25060	FT-7	-
SVHBR/L-1616H11	VBMT1103	16	16	100	13	20	-	-	CS25060	FT-7	-
SVHBR/L-2020K11	VBMT1103	20	20	125	16.5	25	-	-	CS25060	FT-7	-
SVHBR/L-2020K16	VBMT1604	20	20	125	17	25	SMV-321	SN535	CS35115/ CS35119S	FT-15	LW035
SVHBR/L-2525M16	VBMT1604	25	25	150	23	32	SMV-321	SN535	CS35115/ CS35119S	FT-15	LW035
SVHBR/L-3232P16	VBMT1604	32	32	170	26.5	40	SMV-321	SN535	CS35115/ CS35119S	FT-15	LW035

Order No.	Insert	Dimensions(mm)					Parts			Wrench
Right/Left		H	B	LF	LH	WF
SVHCR/L-1212F11	VCMT1103	12	12	80	13	16	-	-	CS25060	FT-7	-
SVHCR/L-1616H11	VCMT1103	16	16	100	13	20	-	-	CS25060	FT-7	-
SVHCR/L-2020K11	VCMT1103	20	20	125	16.5	25	-	-	CS25060	FT-7	-
SVHCR/L-2020K16	VCMT1604	20	20	125	17	25	SMV-321	SN535	CS35115/ CS35119S	FT-15	LW035
SVHCR/L-2525M16	VCMT1604	25	25	150	23	32	SMV-321	SN535	CS35115/ CS35119S	FT-15	LW035
SVHCR/L-3232P16	VCMT1604	32	32	170	26.5	40	SMV-321	SN535	CS35115/ CS35119S	FT-15	LW035
