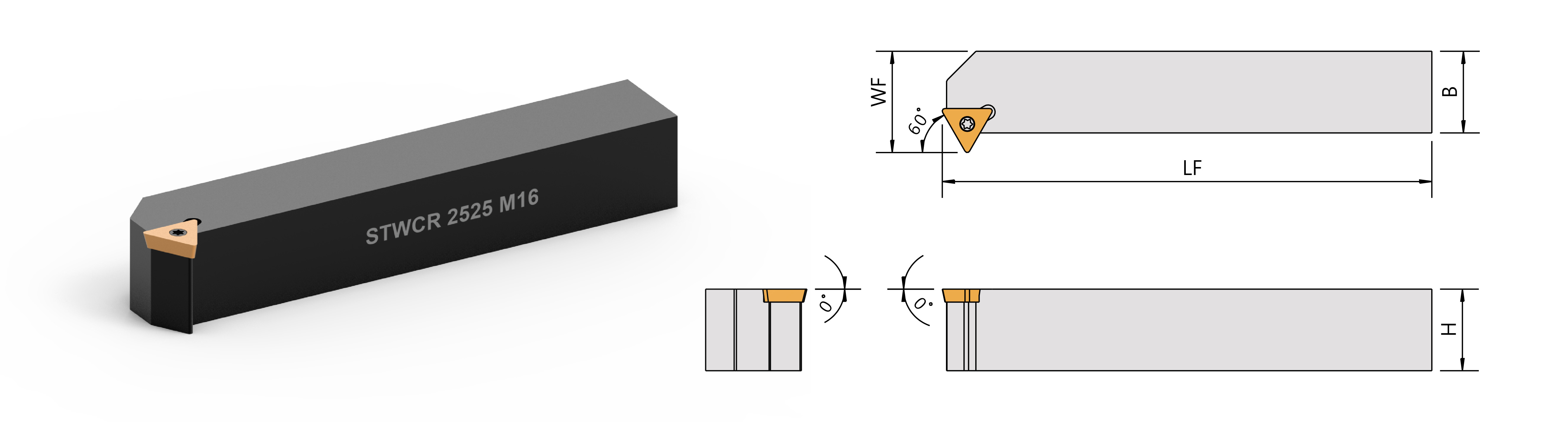

STWC 60°

Please click the picture to enlarge.

Спецификация

Order No.InsertDimensions(mm)PartsWrench
Right/Left H B LF WF
STWCR/L-1212H11 TCMT1102 12 12 100 15.3 CS25060 FT-7
STWCR/L-1616H11 TCMT1102 16 16 100 19.3 CS25060 FT-7
STWCR/L-2020K11 TCMT1102 20 20 125 23.3 CS25060 FT-7
STWCR/L-2525M11 TCMT1102 25 25 150 28.3 CS25060 FT-7
STWCR/L-1616H16 TCMT16T3 16 16 100 21 CS40090 FT-15
STWCR/L-2020K16 TCMT16T3 20 20 125 26 CS40090 FT-15
STWCR/L-2525M16 TCMT16T3 25 25 150 31 CS40090 FT-15
STWCR/L-3232P16 TCMT16T3 32 32 170 38 CS40090 FT-15
