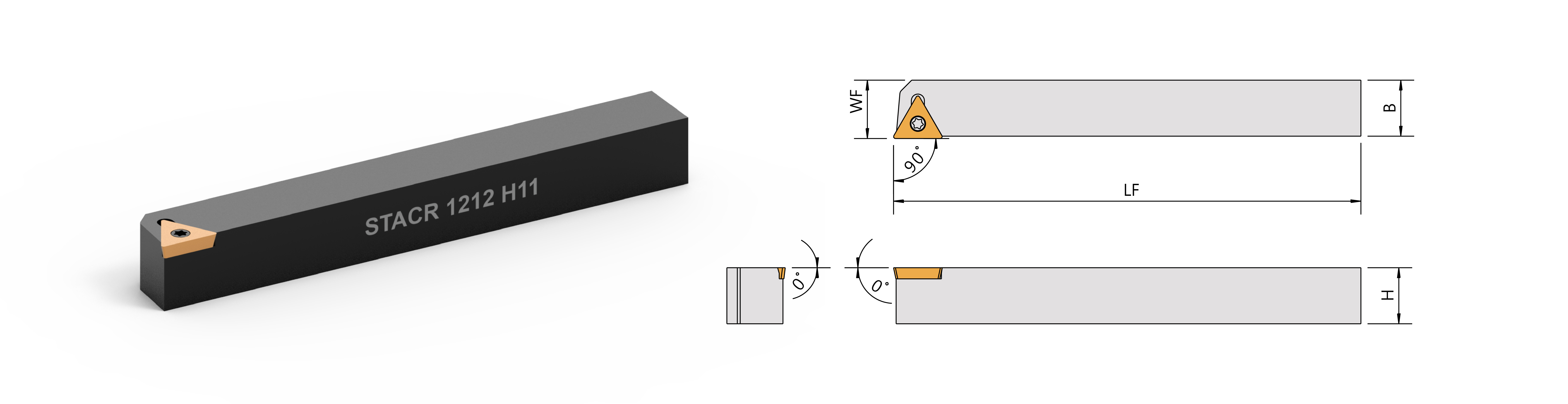

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||
|---|---|---|---|---|---|---|---|
| Right/Left |  |
H | B | LF | WF |  |
 |
| STACR/L-0808H09 | TCMT0902 | 8 | 8 | 100 | 8.5 | CS22050 | FT-7 |
| STACR/L-1010H09 | TCMT0902 | 10 | 10 | 100 | 10.5 | CS22050 | FT-7 |
| STACR/L-1212H11 | TCMT1102 | 12 | 12 | 100 | 12.5 | CS25060 | FT-7 |
| STACR/L-1616H11 | TCMT1102 | 16 | 16 | 100 | 16.5 | CS25060 | FT-7 |
