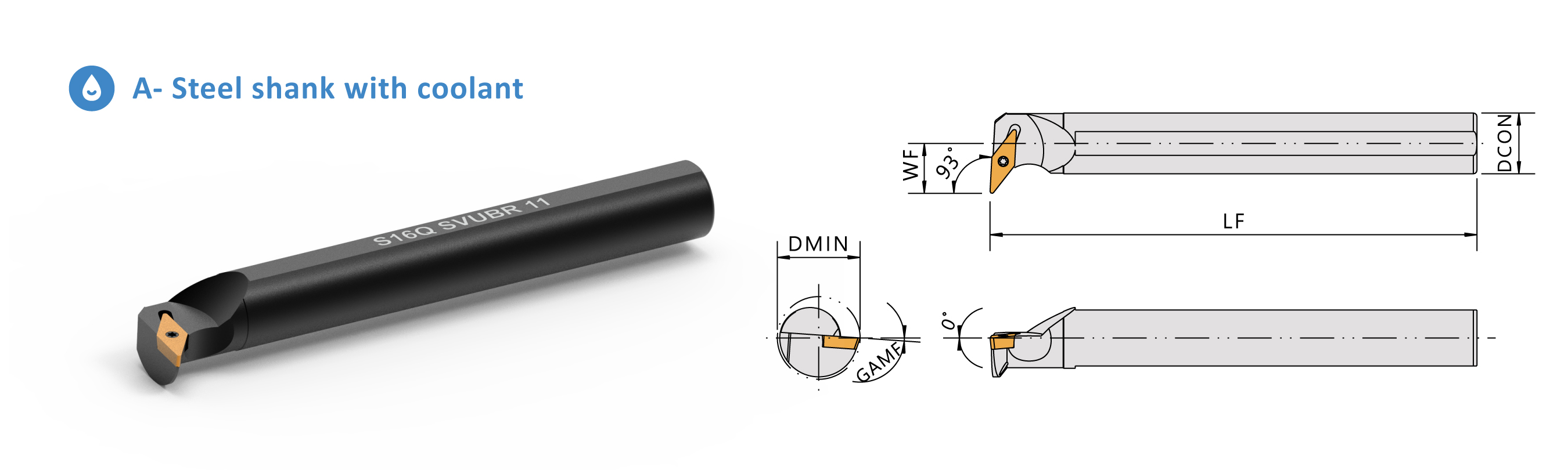

S-SVUB 93°
Please click the picture to enlarge.
Спецификация
Order No. | Insert | Dimensions(mm) | Parts | Wrench |
Right/Left |
|
DCON |
WF |
LF |
DMIN |
GAMF |
|
|
S16Q-SVUBR/L11 |
VCMT1103 |
16 |
13 |
180 |
11 |
7° |
CS25060 |
FT-7 |
S20R-SVUBR/L11 |
VCMT1103 |
20 |
15 |
200 |
13.5 |
6° |
CS25060 |
FT-7 |
S25R-SVUBR/L11 |
VCMT1103 |
25 |
20.5 |
200 |
16.5 |
4° |
CS25060 |
FT-7 |
S20R-SVUBR/L16 |
VCMT1604 |
20 |
19 |
200 |
15.5 |
8° |
CS35090 |
FT-15 |
S25R-SVUBR/L16 |
VCMT1604 |
25 |
20.5 |
200 |
17 |
4° |
CS35090 |
FT-15 |
S32S-SVUBR/L16 |
VCMT1604 |
32 |
22.5 |
250 |
21 |
8° |
CS35090 |
FT-15 |
S32U-SVUBR/L16 |
VCMT1604 |
32 |
22.5 |
350 |
21 |
8° |
CS35090 |
FT-15 |
S40V-SVUBR/L16 |
VCMT1604 |
40 |
27 |
400 |
25.5 |
6° |
CS35090 |
FT-15 |
S50V-SVUBR/L16 |
VCMT1604 |
50 |
32 |
400 |
29 |
6° |
CS35090 |
FT-15 |
